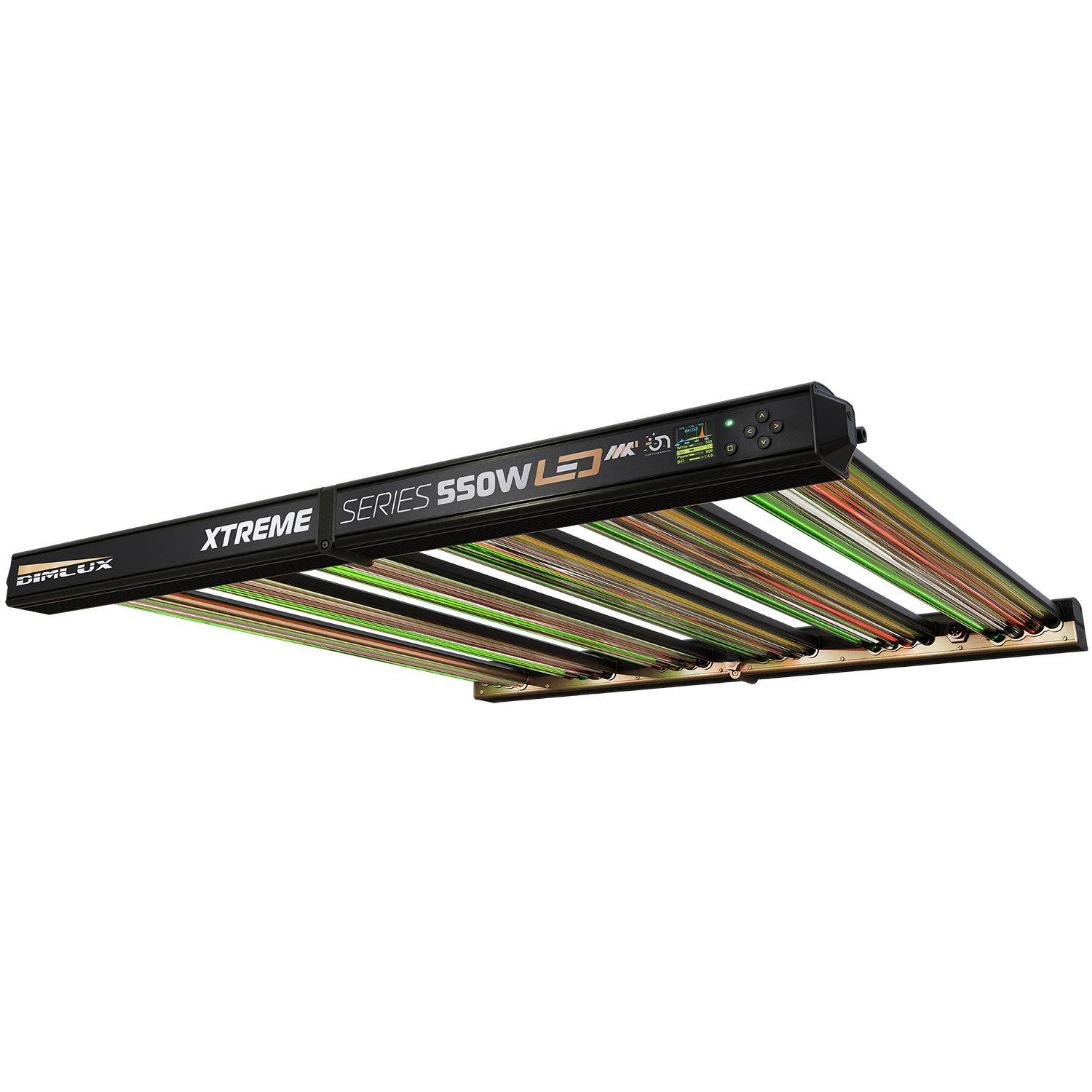

Dimlux Xtreme Series 550W LED MKII

Categories: , , ,
SKU: In stock

Featuring our patented negative ion + cold plasma generator, it effectively reduces bacteria, mold, viruses, and other airborne pathogens. With increased efficiency and enhanced optics for deeper light penetration, it delivers higher yields than ever before.

Patented negative ion + cold plasma generator reducing Bacteria, Mold, Viruses

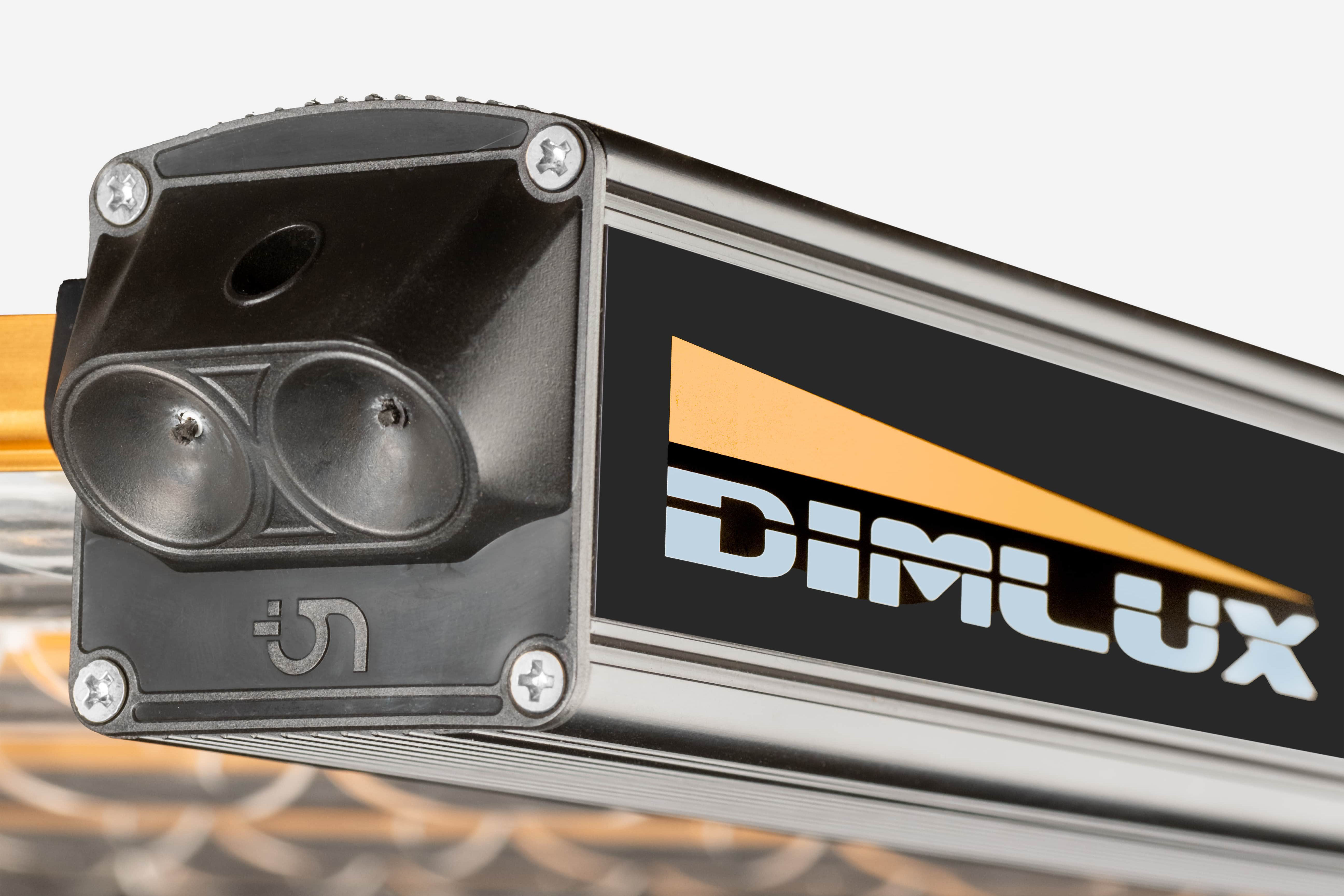

An extremely powerful negative ion flow is created and expelled from the ion electrodes. These electrically charged negative ions in the air bond with pathogens. Once a bond is made, these particles become too heavy to stay in the air and fall to the floor. It is also possible to create positive ions, which in combination with negative ions, bond to pathogens and destroy them using the released energy. The ratio between the negative and positive ions can be selected by the customer based on the pathogen that needs to be neutralised.

Manual

Product Features:

This groundbreaking LED fixture, born from 12 years of experience and expertise in lighting technology, heralds a new era in horticultural lighting. The DimLux Xtreme Series LED merges patented technologies and the latest LED innovations in an optimal thermal design. For professional growers, this promises not only a superior growing experience but also a significant return on investment.

Experience complete control with our unique, adjustable PhytoVegSpec® growing spectrum. This ensures even distribution and deep penetration of light, resulting in consistently high-quality crops and yields.

The DimLux Xtreme Series LED generates exceptionally high PPFD levels across a 1.5—1.5 m area, with a full growth spectrum. The fixtures are dimmable without efficiency loss and programmable for various times of the day and growth stages.

An innovative addition is the RGB LEDs. These serve not only as supplementary light but also as green work light during the night phase, automatically activated by a built-in motion sensor.

Product Specifications:

  • Light Source 550W LED
  • Spectrum Adjustable PhytoVegSpec® Indoor
  • Light Output (PPF) 1965 µmol/s
  • Light Output Total (PPF 350-800nm) 1994 µmol/s
  • PAR Photon Efficacy (400-700nm) 3.4 µmol/J @ 230-240V AC
  • Total Photon Efficacy (350-800nm) 3.45 µmol/J @ 230-240V AC
  • AC Input Power 578W
  • AC Input Voltage 208-400V AC, 50/60Hz
  • Beam Angle 90° — 120°

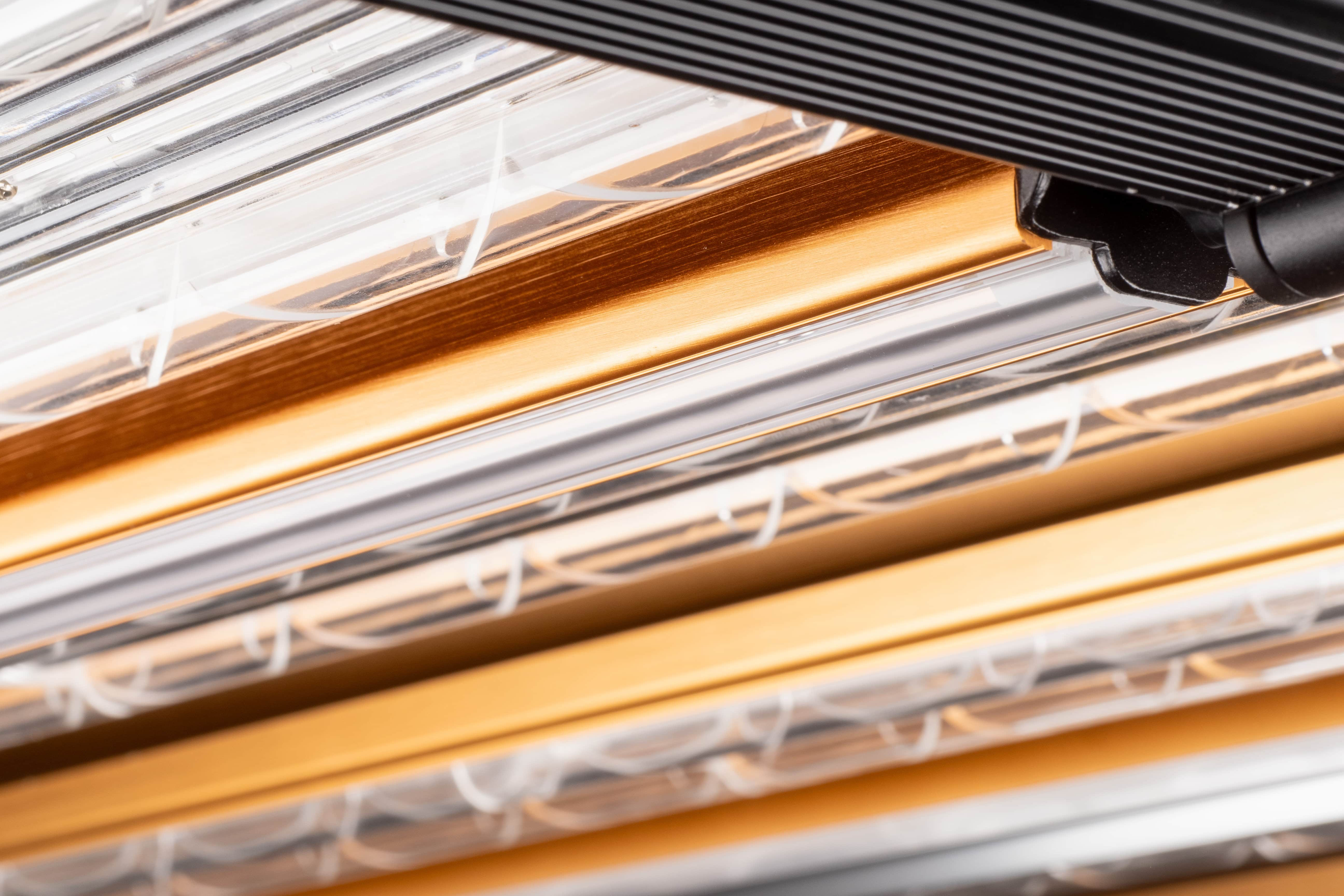

  • Optics Patented Deep Penetration Ultra High Transmittance Lens
  • Auxiliary Light Patented Light Pipe Multi Color 65k
  • Ioniser Patented Negative Ions & Cold Plasma
  • Ozone Non Detectable < 0.05PPM

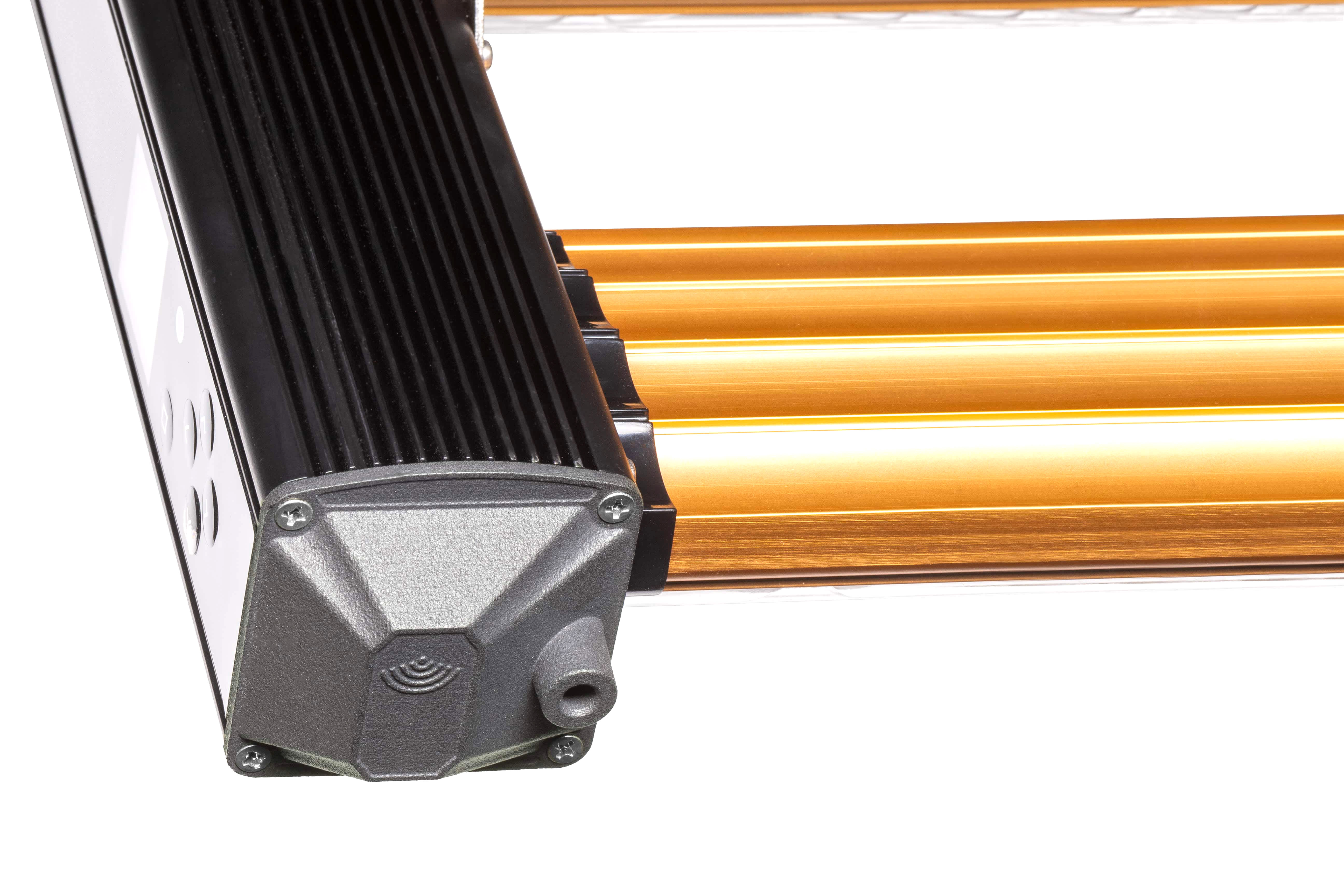

  • Proximity Sensor Doppler Radar
  • Minimum Mounting Height Above Canopy 50 cm / 19.7″
  • Thermal Management Passive
  • Max. Ambient Temperature 35°C / 95°F
  • Control By Smart Remote, Maxi Controller or Internal Controller

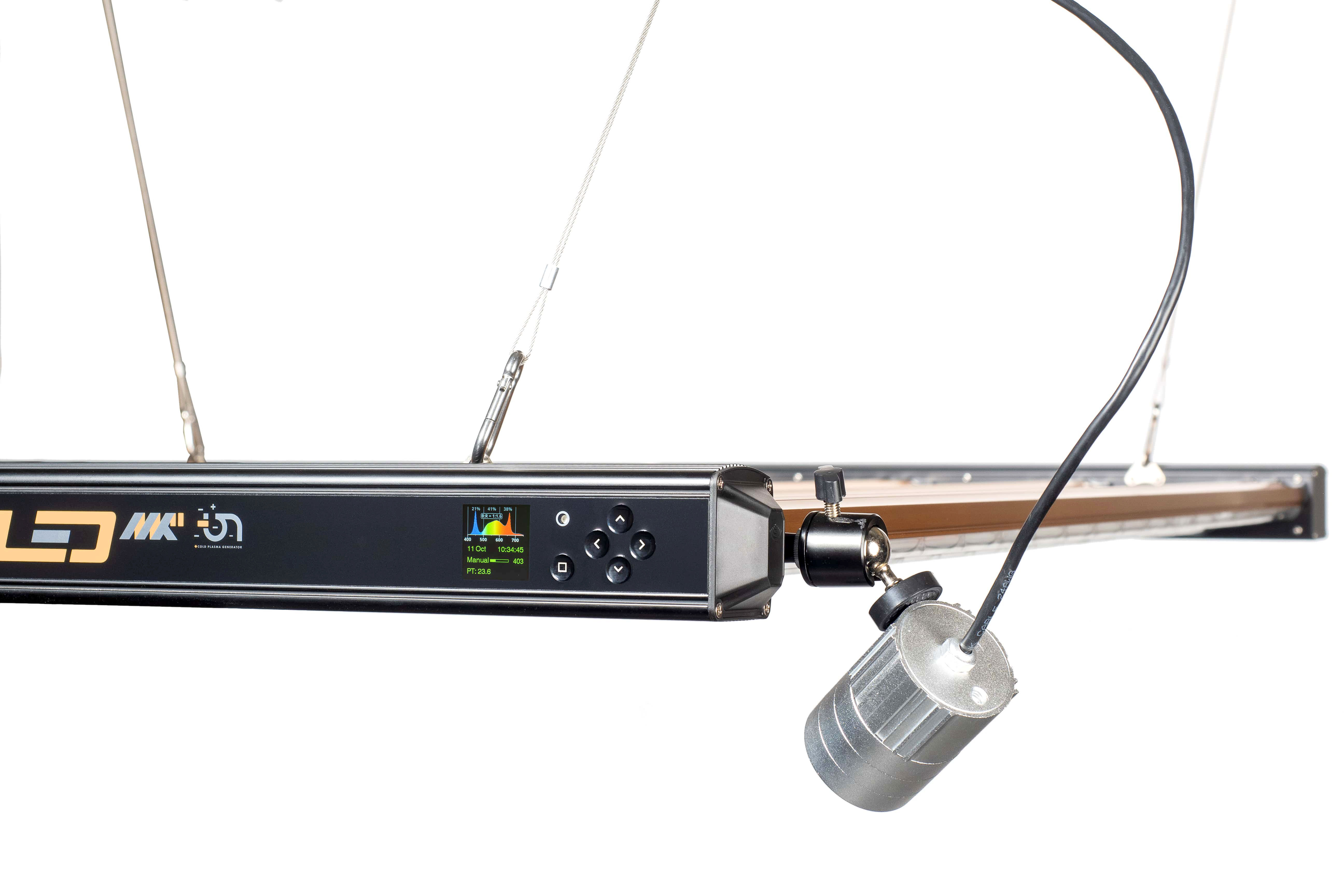

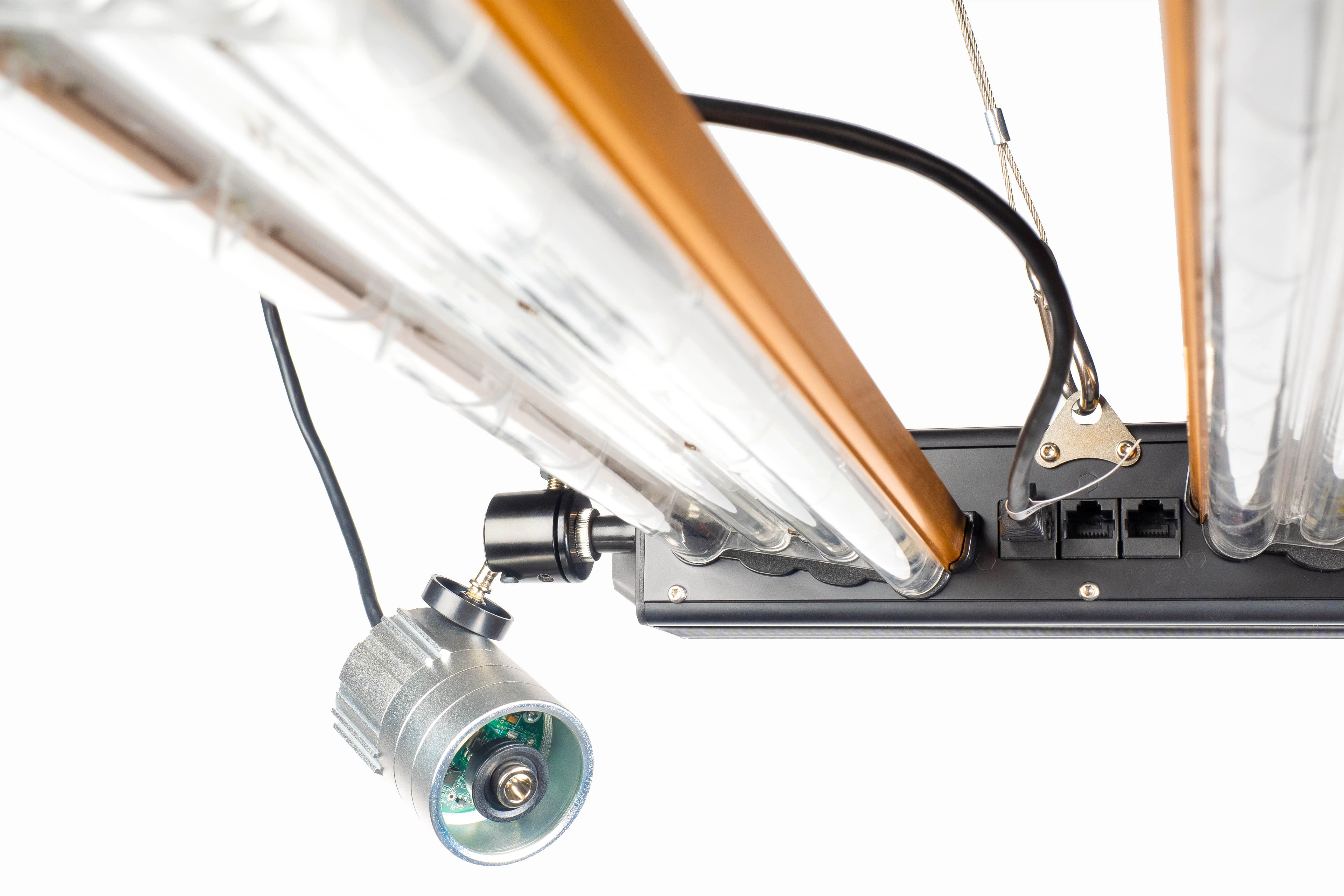

  • Smartports (3x) Interlink, Plant Temperature Sensor, Light Sensor

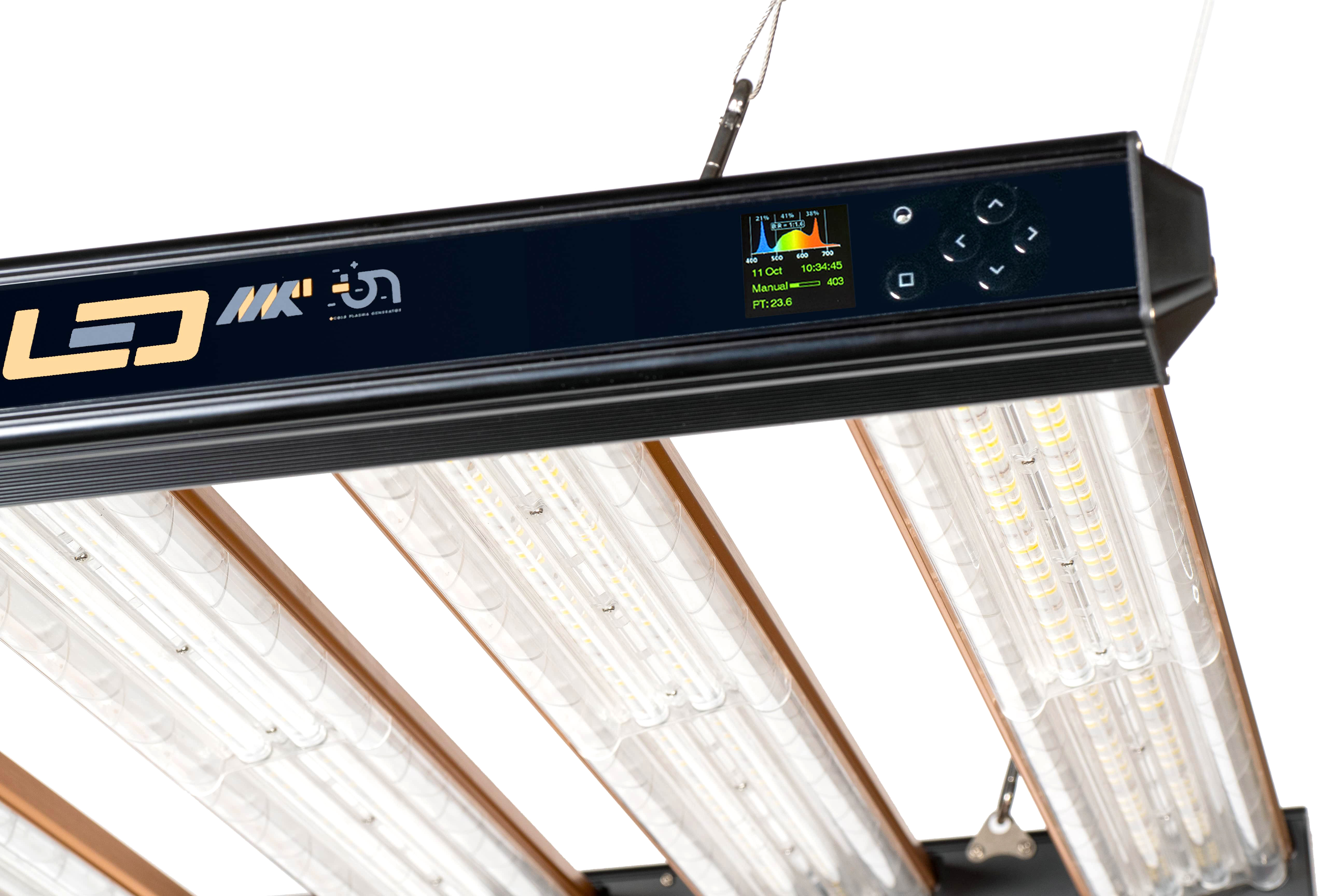

  • Display For Spectrum and GUI 1.54″ 65k Color IPS
  • Total Harmonic Distortion (THD) < 20%
  • Lifetime L90 > 50,000h
  • IP Rating IP65
  • Certifications CE, UL 8800, UL 1598 Wet Location, DLC
  • Weight 10.2 kg / 22.8 lbs
  • Warranty 5 Year Standard
